Portable Series

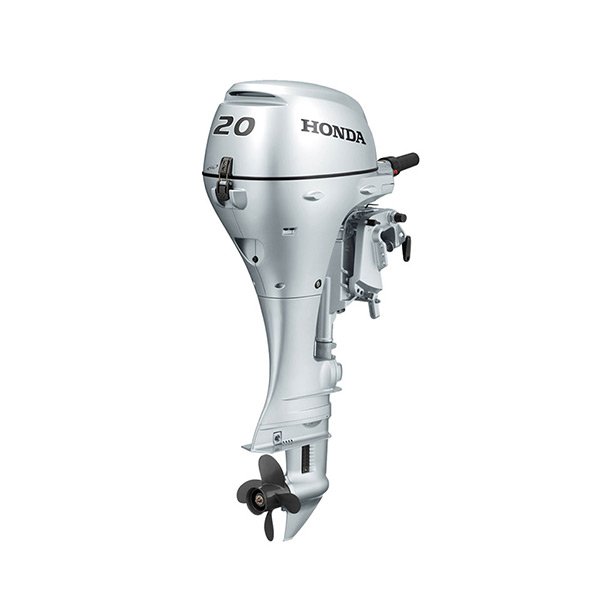

Honda Outboard Motor BF20
In-Line 2-Cylinder 350cc 4-Stroke Engine Host of types ideal for wide variety of boats and applications
SPECIFICATIONS
Engine
| Bore X Stroke (mm) | 59 × 64 |
| Cooling System | Water Cooled |
| Ignition System | CDI (Capacitor Discharge Ignition) Magneto |
| Model | BF20 |
| Starting System | Electric / Manual |
| Dry Weight(Kg) | L:49.5 |
| Displacement (cm3) | 350 |
| Rated Power kW(PS)/rpm | 14.7 (20) / 5,500 |
| Type | 4-Stroke SOHC 2 Cylinders / 4 Valves |
| Full Throttle RPM Range | 5,000-6,000 |
| Fuel Delivery | 1 Carburetor |
| Exhaust | Propeller Boss |
| Gear Ratio | 2.08 |
| Battery Charging Capacity | 12V-6A |
| Transom Height | L:563 |

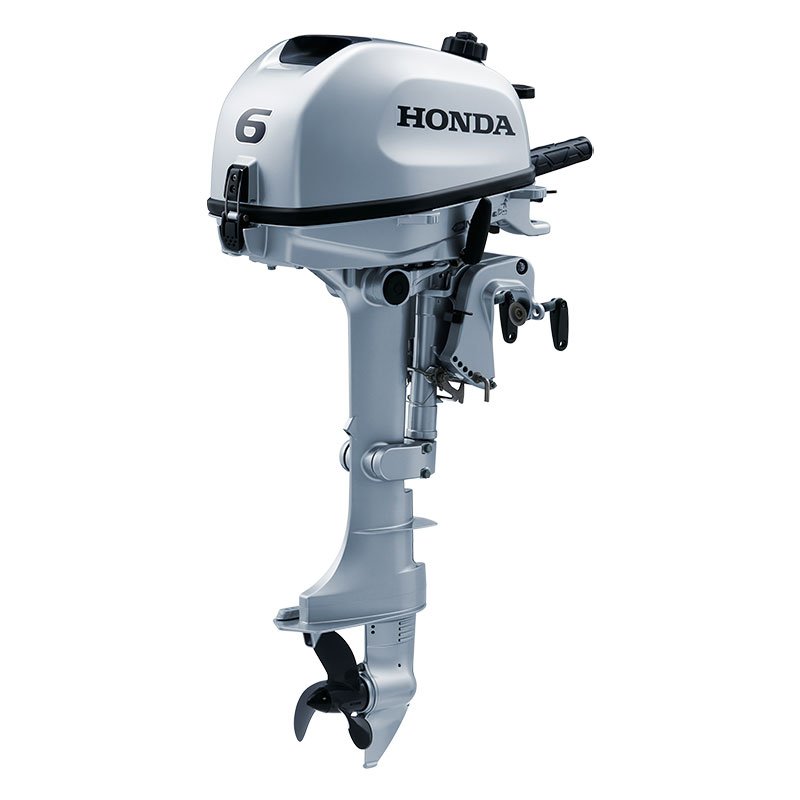

Outboard Motor BF6
127 cc Single cylinder 4 Stroke engine, Easy to carry
SPECIFICATIONS
Engine
| Bore X Stroke (mm) | 60 × 45 |
| Cooling System | Water Cooled |
| Displacement (cm3) | 127 |
| Ignition System | CDI (Capacitor Discharge Ignition) Magneto |
| Model | BF6 |
| Starting System | Recoil starter |
| Dry Weight(Kg) | L:27.5 |
| Rated Power kW(PS)/rpm | 4.5 (6) / 5,500 |
| Full Throttle RPM Range | 5,000-5,500 |
| Fuel Delivery | 1 Carburetor |
| Exhaust | Underwater type |
| Gear Ratio | 2.08 |
| Battery Charging Capacity | N/A |
| Transom Height | L:561 |
| Type | 4 Stroke Over head valve, Single Cylinder |
