HONDA ENGINE GXV SERIES

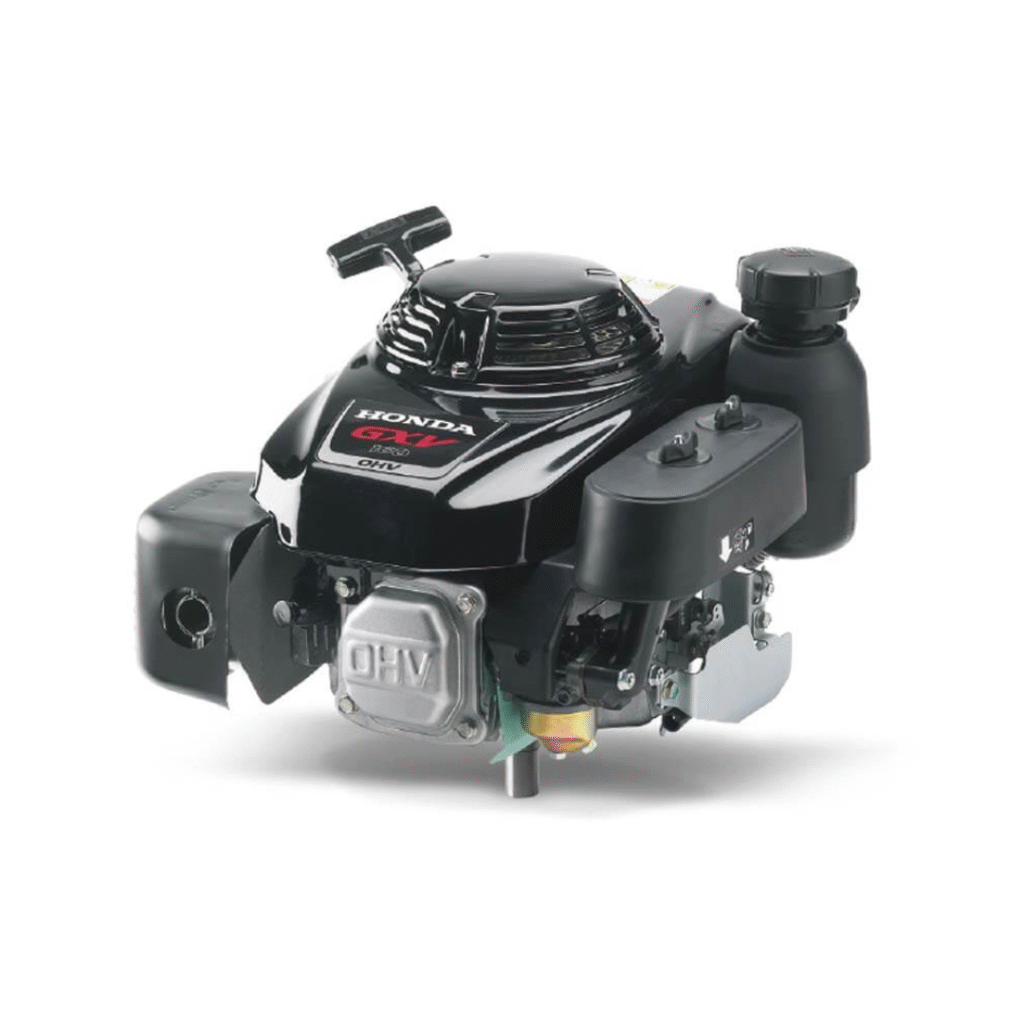

Honda Engine GXV160
The power rating of this engine is the net power tested on a production engine for this engine model and measured in accordance with SAE J1349 at a specified rpm.
SPECIFICATIONS
Engine
| Bore X Stroke (mm) | 68 x 45 mm |
| Compression ratio | 8.0 : 1 |
| Description Code | 4-stroke single cylinder, OHV petrol engine, vertical shaft |
| Fuel Tank Capacity (L) | 1.8 Liter |
| Ignition System | Transistorised |
| Net Power | 3.2 kW ( 4.3 HP ) / 3600 rpm |
| Dry Weight(Kg) | 15.5 kg |
| Displacement | 163 cm³ |
| Cylinder sleeve type | Cast iron sleeve |
| Dimensions (L x W x H) | 420 x 365 x 357 mm |
| Fuel cons. at cont. rated power | 1.1 L/h – 3000 rpm |
| Cont rated power | 2.0 kW ( 2.7 HP ) / 3000 rpm |
| Max. net torque | 9.6 Nm / 0.98 kgfm / 2500 rpm |
| Engine Oil Capacity | 0.65 Litre |
| Starter | Recoil |
