HONDA ENGINE MID SERIES
Honda Engine GX160
The Honda GX160 is a high-performance 4-stroke OHV petrol engine designed to deliver exceptional power and reliability across various demanding applications. With a robust 3.6 kW (4.8 HP) net power at 3600 RPM, this engine is engineered for both durability and efficiency, making it ideal for use in environments that require consistent performance and high load capabilities.
SPECIFICATIONS
| Bore X Stroke (mm) | 68 x 45 mm |
| Compression ratio | 9.0 : 1 |
| Description Code | 4-stroke single cylinder, OHV petrol engine, horizontal shaft |
| Fuel Tank Capacity (L) | 3.1 Liter |
| Ignition System | Transistorised type magneto ingnition system |
| Net Power | 3.6 kW ( 4.8 HP ) / 3600 rpm |
| Oil Capacity | 0.58 Liter |
| Starting System | Recoil |
| Dry Weight(Kg) | 15.1kg |
| Displacement | 163 cm³ |
| Cylinder sleeve type | Cast iron sleeve |
| Dimensions (L x W x H) | 312 x 362 x 346 mm |
| Fuel cons. at cont. rated power | 1.4 L/h – 3600 rpm |
| Cont rated power | 2.9 kW ( 3.9 HP ) / 3600 rpm |
| Max. net torque | 10.3 Nm / 1.05 kgfm / 2500 rpm |
Key Features
- Powerful and Efficient
The GX160 boasts a 3.6 kW (4.8 HP) net power output at 3600 RPM, providing robust performance for a range of applications.
- Advanced OHV Design
The Overhead Valve (OHV) design enhances combustion efficiency, offering a high power-to-displacement ratio while maintaining a compact size.
- Easy Starting
Equipped with an automatic decompression system and an easy-to-grip soft recoil starter handle, the GX160 ensures quick and reliable starts with minimal effort.
- Durable Construction
Built with high-quality materials and purpose-built components, the GX160 guarantees long-term reliability and resistance to wear and tear.
- Environmental Compliance
The engine meets the world’s most stringent environmental regulations, ensuring it operates cleanly and efficiently.
- Low Fuel and Oil Consumption
Its compact combustion chamber and high thermal efficiency contribute to reduced fuel and oil consumption, making it cost-effective to operate.
- Reduced Vibration and Noise
Designed to minimize vibration and noise, the GX160 provides a smoother and quieter operating experience.
Applications of the Honda GX160
Marine Applications: Long-Tail Boats
The GX160’s 1/2 reduction mechanism is specifically developed for long-tail boats operating in harsh marine environments. This design ensures
Faster Boat Speeds
The engine’s high power output enables quicker acceleration and higher speeds, essential for efficient navigation and fishing activities.
Improved Fuel Economy
Its fuel-efficient design reduces operational costs, making it ideal for long-distance trips and extended use.
Reliability in Harsh Conditions
The GX160 maintains high performance even in challenging conditions, such as shallow waters and rough seas.
Sub-Applications:
- Mid-Range Fishing Boats: Provides reliable power for fishing activities, ensuring smooth operation and effective handling.
- Seafood Transport Boats: Delivers consistent power for transporting fish and seafood, even over long distances.
- Taxi Boats: Ensures dependable performance for passenger transport in areas where boat taxis are commonly used.
2. Agricultural Equipment
The GX160 is well-suited for various agricultural machinery, offering dependable power for:
- Nutt Cutters
Powers equipment used for harvesting nuts, providing consistent performance in agricultural settings.
- Reapers
Operates reaping machines efficiently, assisting in the cutting and gathering of crops.
3. Construction and Industrial Equipment
With its robust design and high output, the GX160 excels in construction and industrial applications, such as:
- Go-Karts
Provides reliable power for go-kart engines, ensuring a fun and exhilarating driving experience.
- Concrete Cutters
Powers equipment for cutting concrete, making it easier to perform precise cuts and achieve high-quality results.
- Power Trowels
Drives trowels used for finishing concrete surfaces, ensuring smooth and professional results.
Why Choose the Honda GX160?
The Honda GX160 is designed for users who require a reliable, high-performance engine for a variety of demanding applications. Its advanced OHV design, durable construction, and fuel-efficient operation make it an excellent choice for both marine and industrial use. Whether powering long-tail boats, agricultural equipment, or construction machinery, the GX160 delivers consistent performance and reliability, even under the most challenging conditions.
Engine Warranty Terms & Conditions
1. Warranty Period
- Two year from the date of purchase for Non-Commercial use by customer.
- Two year from the date of purchase for Commercial/ Rental use by customer.
2. Warranty Obligation
- Repair or replacement of defective part(s ), at any authorised dealer, free of charge, if found defective by reasons of defective material or poor workmanship.
3. Warranty Service
- To obtain warranty service the complete set must be presented to any of authorised dealer/service point at customer’s risk and expense.
4. Terms and Condition
- To qualify for warranty, Honda Engine must be set up by OEM and periodically serviced as per the maintenance schedule, provided in the Owner’s manual by an authorised Honda dealer or Service point and the details updated in the maintenance records. Ensure to get it recorded after every service availed by the Dealer / Service point representative.
- Presentation of this warranty & free service coupon booklet.
- Warranty does not include:
- Normal / natural wear & tear and normal deterioration of paint or other appearances.
- Failures resulting from unauthorised modifications or repairs.
- Failures resulting due to not availing of free service within the stipulated time
- Rubber parts, Hardware items like Nuts & Bolts, Element Air Cleaner, Filters, Electrical Wires, Spark Plug, Gaskets, Starter Rope, Oil and Petrol.
- Damages or failures resulting from misuse, operational faults, negligence, abnormal use, insufficient care, over-loading, accident or fire from external source, theft, chemical fall out, stone chipping, industrial pollution, or transportation.
- Failures due to usage of non-recommended or adulterated engine oil and fuel. Failures due to usage of mixture of engine oil and fuel.
- Normal phenomena such as noise and vibrations.
- Incidental or consequential damage like inconvenience or commercial loss.
- Any part or labour incurred in normal maintenance services.
- Failures resulting from usage of non-genuine spare part (s).

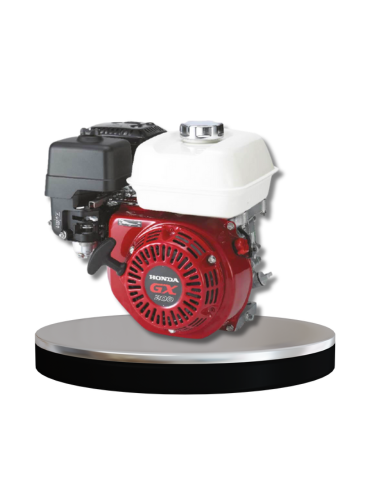

Honda Engine GX200
Reliable Power for Every Application
The Honda Engine GX200 is one of the most trusted names in the world of industrial and commercial engines. Renowned for its performance, durability, and versatility, this 4-stroke OHV engine is engineered to power a wide variety of equipment across industries. Whether you are using it for construction machinery, agricultural tools, or generator sets, the Honda GX200 engine guarantees efficiency, power, and reliability.
Built to perform in demanding environments, the GX200 is part of Honda’s legendary GX series — globally recognized for high-quality performance and long life span.
Specifications of Honda GX200 Engine
| Feature | Specification |
|---|---|
| Engine Type | Air-cooled, 4-stroke, OHV, single-cylinder |
| Displacement | 196 cc |
| Maximum Output | 6.5 HP @ 3,600 RPM |
| Net Torque | 12.4 Nm @ 2,500 RPM |
| Fuel Tank Capacity | 3.1 Litres |
| Oil Capacity | 0.6 Litres |
| Bore x Stroke | 68 mm x 54 mm |
| Ignition System | Transistorized magneto ignition |
| Starting System | Recoil (Rope) Start |
| Air Cleaner | Dual Element |
| Dimensions (LxWxH) | 312 x 362 x 346 mm |
| Dry Weight | Approx. 16 kg |
| Fuel Consumption Rate | ~1.7 L/hour (at rated output) |
Key Features of the Honda GX200 Engine
- Legendary Honda Durability
Built with premium materials and precision engineering for long-term use. - OHV (Overhead Valve) Design
Enhances combustion efficiency, reduces emissions, and improves fuel economy. - Fuel Efficient Operation
Delivers high output with minimal fuel consumption, saving operational costs. - Low Vibration & Noise
Engineered with precision-balanced components for quieter, smoother operation. - Easy Starting System
Equipped with an advanced recoil start mechanism for effortless ignition. - Dual Element Air Cleaner
Offers excellent filtration and prolonged engine life, even in dusty environments. - Heavy-Duty Performance
Can handle high loads, continuous operation, and rugged usage conditions. - Low Oil Shutdown
Automatically stops the engine to prevent damage when oil level is low.
Applications of Honda GX200 Engine
The Honda GX200 is versatile and commonly used across multiple industries:
- Construction Equipment: Concrete mixers, compactors, trowels, and power screeds.
- Agriculture: Tillers, water pumps, sprayers, and threshers.
- Power Generation: Generator sets for homes, shops, and field operations.
- Industrial Equipment: Pressure washers, air compressors, and cutting machines.
- Commercial Use: Go-karts, small utility vehicles, and portable machinery.
Its rugged performance makes it a perfect fit for both stationary and portable applications.
Why Choose the Honda Engine GX200?
Trusted Performance
The GX200 is known worldwide for delivering consistent, reliable performance in even the harshest environments. Whether in fields, factories, or construction sites, it keeps going strong.
Fuel Efficiency You Can Count On
Thanks to its advanced combustion system, the GX200 burns fuel more completely and cleanly, which translates to fewer refueling stops and lower fuel costs over time.
Low Maintenance Requirements
Honda engines are built for long service intervals with easily accessible parts, meaning less downtime and lower maintenance costs.
Wide Availability of Parts and Service
With Honda’s vast dealer and service network across India and globally, getting support, spares, and servicing is fast and hassle-free.
Environmentally Friendly
The GX200 meets global emission standards, making it a cleaner choice without compromising on power.
If you’re looking for a reliable, fuel-efficient, and powerful engine, the Honda GX200 is a top contender in the 6.5 HP class. Its wide range of applications, strong performance, and low maintenance needs make it the preferred engine for professionals across industries.
Choose the Honda GX200 Engine — because when it comes to performance and peace of mind, nothing powers your equipment better than Honda.

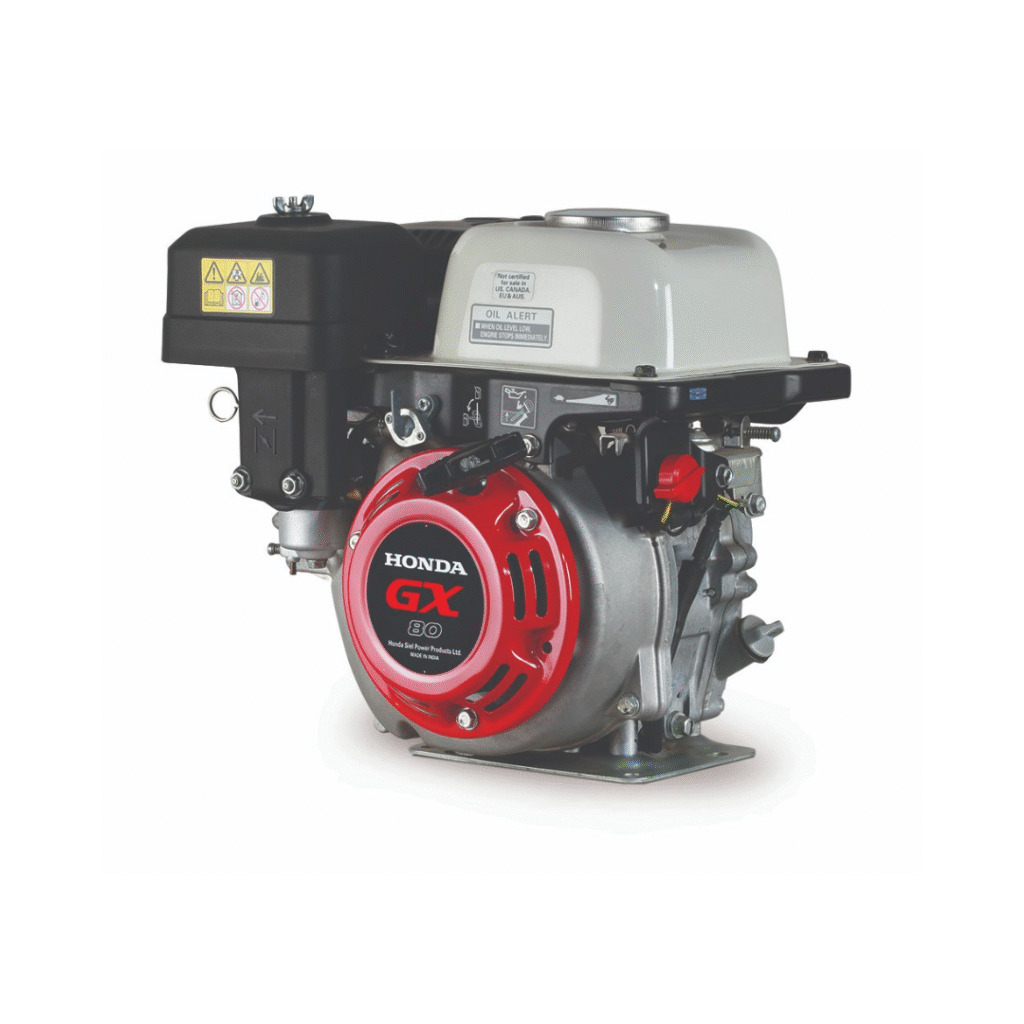

Honda Engine GX80
The Honda GX80 is designed for versatility and efficiency, offering 1.5 kW (2 hp) at 3600 rpm. Its advanced Overhead Valve(OHV) design is powered by a maintenance-free, low-noise, making the engine lightweight, compact, and perfect for various high-performance applications such as sugarcane juice machines, long-tailed outboard boats, concrete vibrator, and HTP Sprayer.
SPECIFICATIONS
| Bore X Stroke (mm) | 46 x 48 mm |
| Compression ratio | 9 : 1 |
| Description Code | 4-stroke single cylinder, OHV petrol engine, 25° inclined cylinder, Horizontal shaft |
| Fuel Tank Capacity (L) | 1.5 L |
| Ignition System | Transistor Type Magneto Ignition |
| Net Power | 1.5 kW ( 2 HP ) / 3600 rpm |
| Oil Capacity | 0.36 L |
| Starting System | Recoil (el. start optional) |
| Dry Weight(Kg) | 11.1 kg |
| Displacement | 79.7 cm³ |
| Cylinder sleeve type | Cast iron sleeve |
| Dimensions (L x W x H) | 275 x 342 x 323 mm |
| Fuel cons. at cont. rated power | 0.6 L/h – 3600 rpm |
| Cont rated power | 1.2 kW ( 1.6 HP ) / 3600 rpm |
| Max. net torque | 4.5 N.m / (0.46 kgf.m / 2500 rpm |
Key Features
- OHV Design
OHV Design with Low-Noise: The GX80 features an Overhead Valve (OHV) layout, driven by a maintenance-free, low-noise. This design reduces overall engine size and weight while ensuring smooth, quiet operation, making it ideal for environments where noise control is important.
- Durability & Reliability
The cast iron cylinder sleeve and high carbon steel, dual ball-bearing crankshaft ensure long-lasting durability and superior reliability, even in demanding conditions.
- Low Noise Levels
The large-capacity muffler, combined with the unique OHV layout, reduces noise for better user experience and reduced sound pollution.
- Fuel Efficiency & Low Emissions
A compact combustion chamber with high thermal efficiency minimizes fuel consumption and ensures compliance with the world’s strictest environmental standards.
Applications of Honda GX80 Engine
- Sugarcane Juice Machines:
The Honda GX80 provides smooth and reliable power, making it the perfect engine for sugarcane juice machines. Its compact design and low-noise operation ensure that juice vendors and small business owners can offer a seamless experience to customers, even in busy markets. The engine’s fuel efficiency keeps operational costs low while maintaining consistent power output, enabling longer operating hours without interruptions.
- Long-Tailed Outboard Boats:
In the world of water transport, the GX80 is an excellent choice for powering long-tailed outboard boats. Its high durability make it suitable for navigating various water conditions. The engine’s smooth acceleration ensures efficient maneuverability, while its lightweight build helps to enhance the boat’s speed and responsiveness. The low fuel consumption ensures that long voyages can be completed with fewer refueling stops, a critical advantage for both fishing and transportation activities.
Engine Warranty Terms & Conditions
1. Warranty Period
- Two year from the date of purchase for Non-Commercial use by customer.
- Two year from the date of purchase for Commercial/ Rental use by customer.
2. Warranty Obligation
- Repair or replacement of defective part(s ), at any authorised dealer, free of charge, if found defective by reasons of defective material or poor workmanship.
3. Warranty Service
- To obtain warranty service the complete set must be presented to any of authorised dealer/service point at customer’s risk and expense.
4. Terms and Condition
- To qualify for warranty, Honda Engine must be set up by OEM and periodically serviced as per the maintenance schedule, provided in the Owner’s manual by an authorised Honda dealer or Service point and the details updated in the maintenance records. Ensure to get it recorded after every service availed by the Dealer / Service point representative.
- Presentation of this warranty & free service coupon booklet.
- Warranty does not include:
- Normal / natural wear & tear and normal deterioration of paint or other appearances.
- Failures resulting from unauthorised modifications or repairs.
- Failures resulting due to not availing of free service within the stipulated time
- Rubber parts, Hardware items like Nuts & Bolts, Element Air Cleaner, Filters, Electrical Wires, Spark Plug, Gaskets, Starter Rope, Oil and Petrol.
- Damages or failures resulting from misuse, operational faults, negligence, abnormal use, insufficient care, over-loading, accident or fire from external source, theft, chemical fall out, stone chipping, industrial pollution, or transportation.
- Failures due to usage of non-recommended or adulterated engine oil and fuel. Failures due to usage of mixture of engine oil and fuel.
- Normal phenomena such as noise and vibrations.
- Incidental or consequential damage like inconvenience or commercial loss.
- Any part or labour incurred in normal maintenance services.
- Failures resulting from usage of non-genuine spare part (s).
